card caliper
card caliper
Regular price
¥3,300 JPY
Regular price
Sale price
¥3,300 JPY
Unit price
/
per

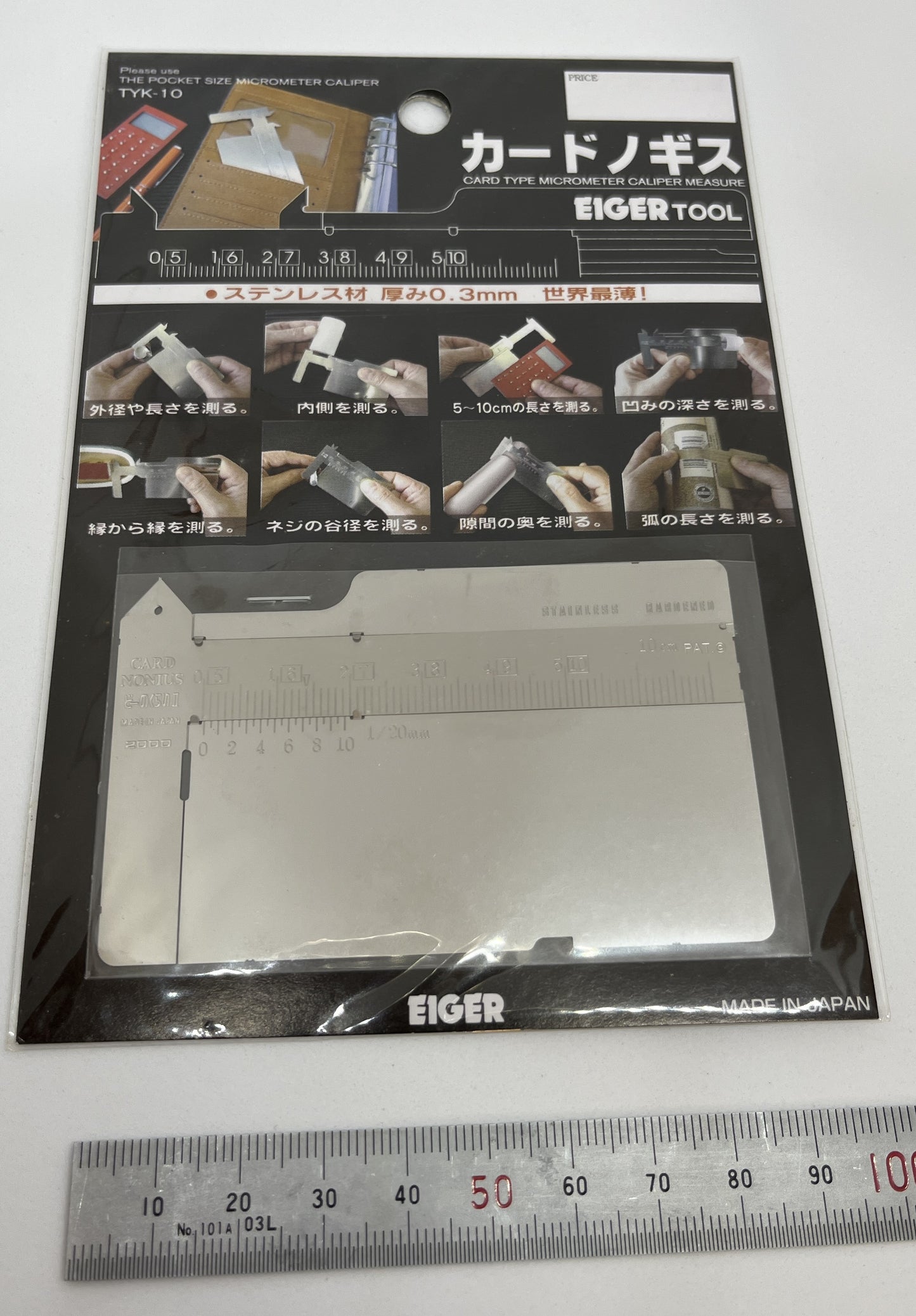

This is a card type caliper that can be stored smartly.
The thickness is a whopping 0.3mm, the world's thinnest!
Durable calipers made of stainless steel
It will be useful in various scenes!

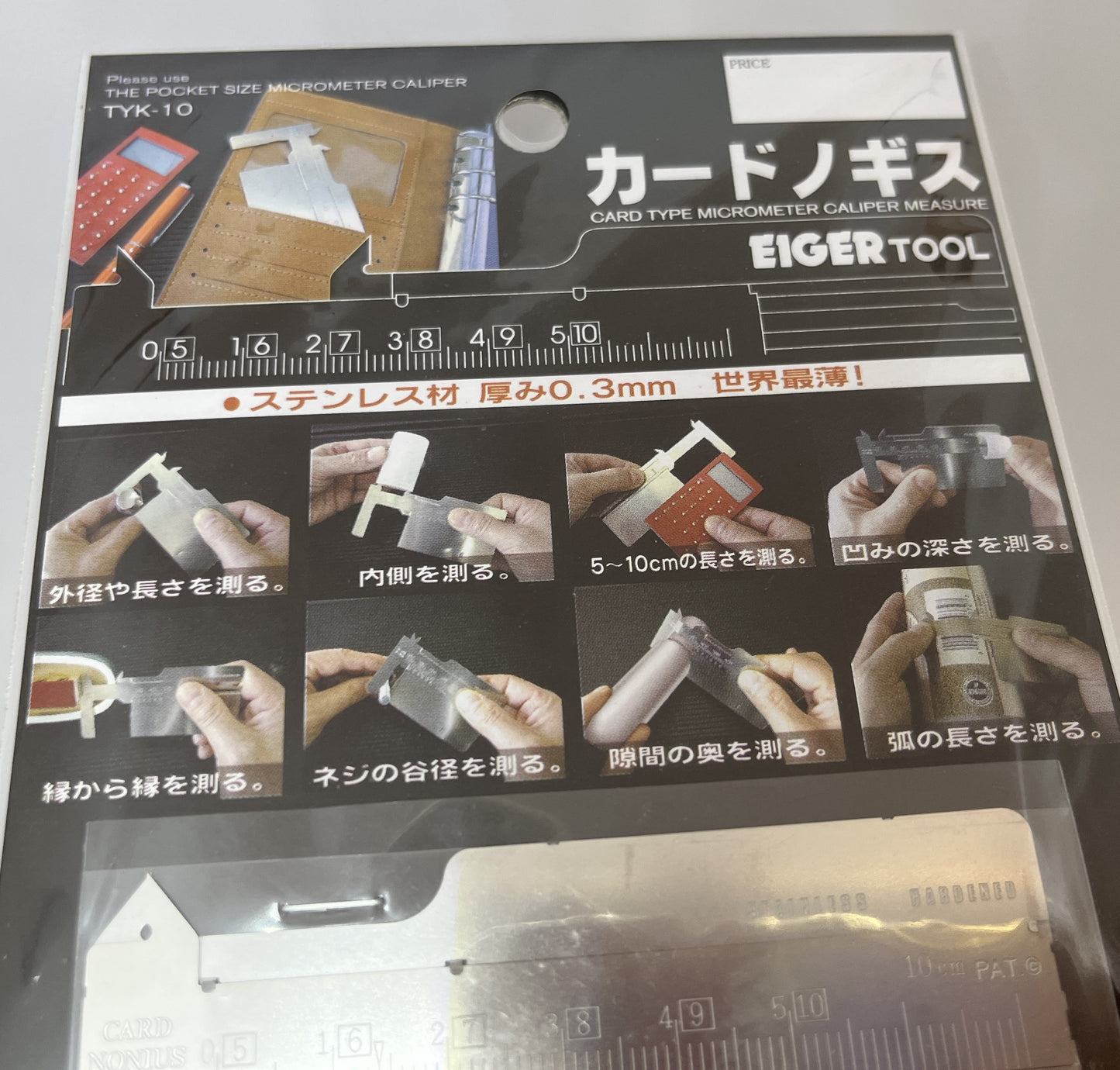

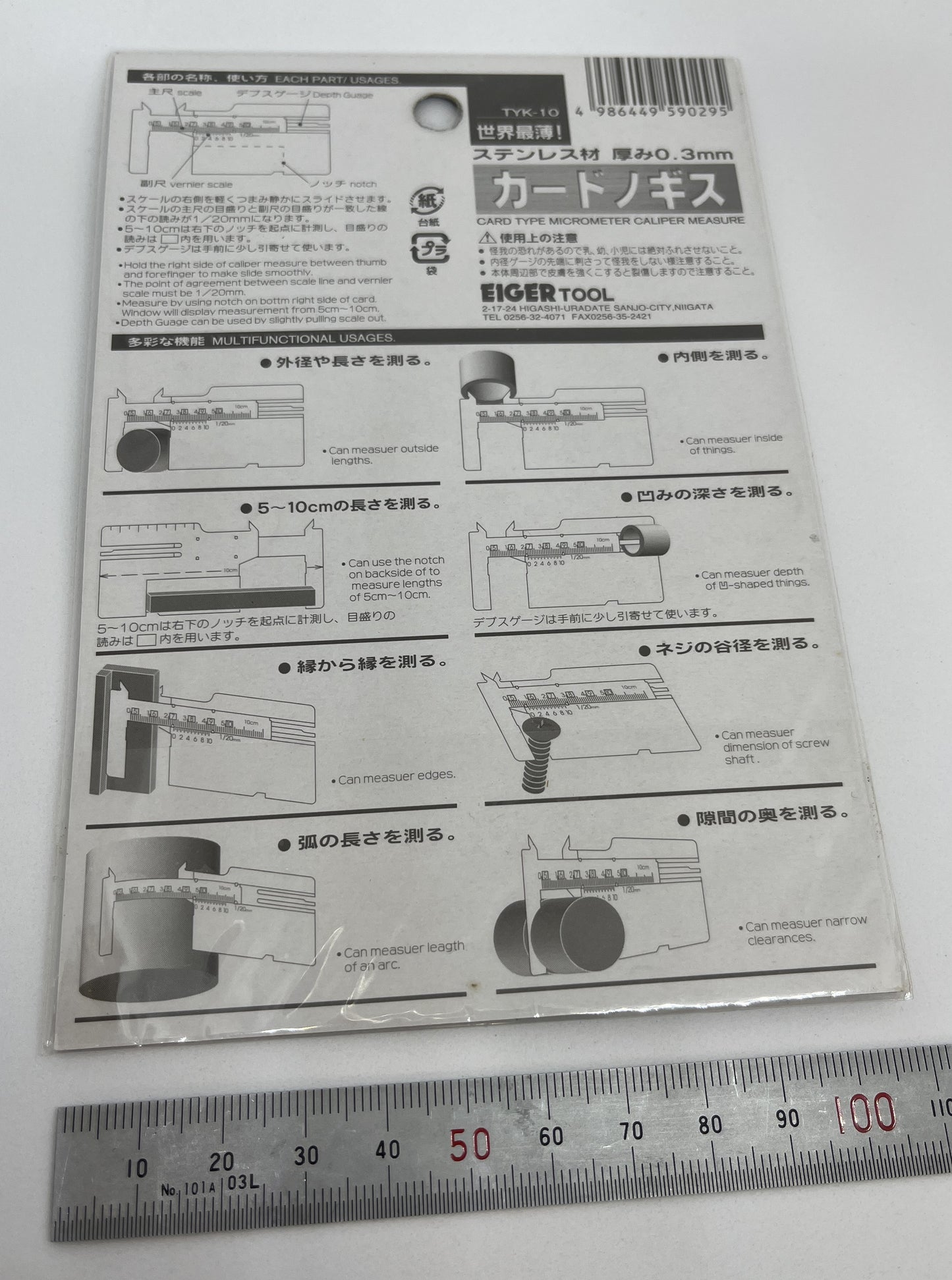

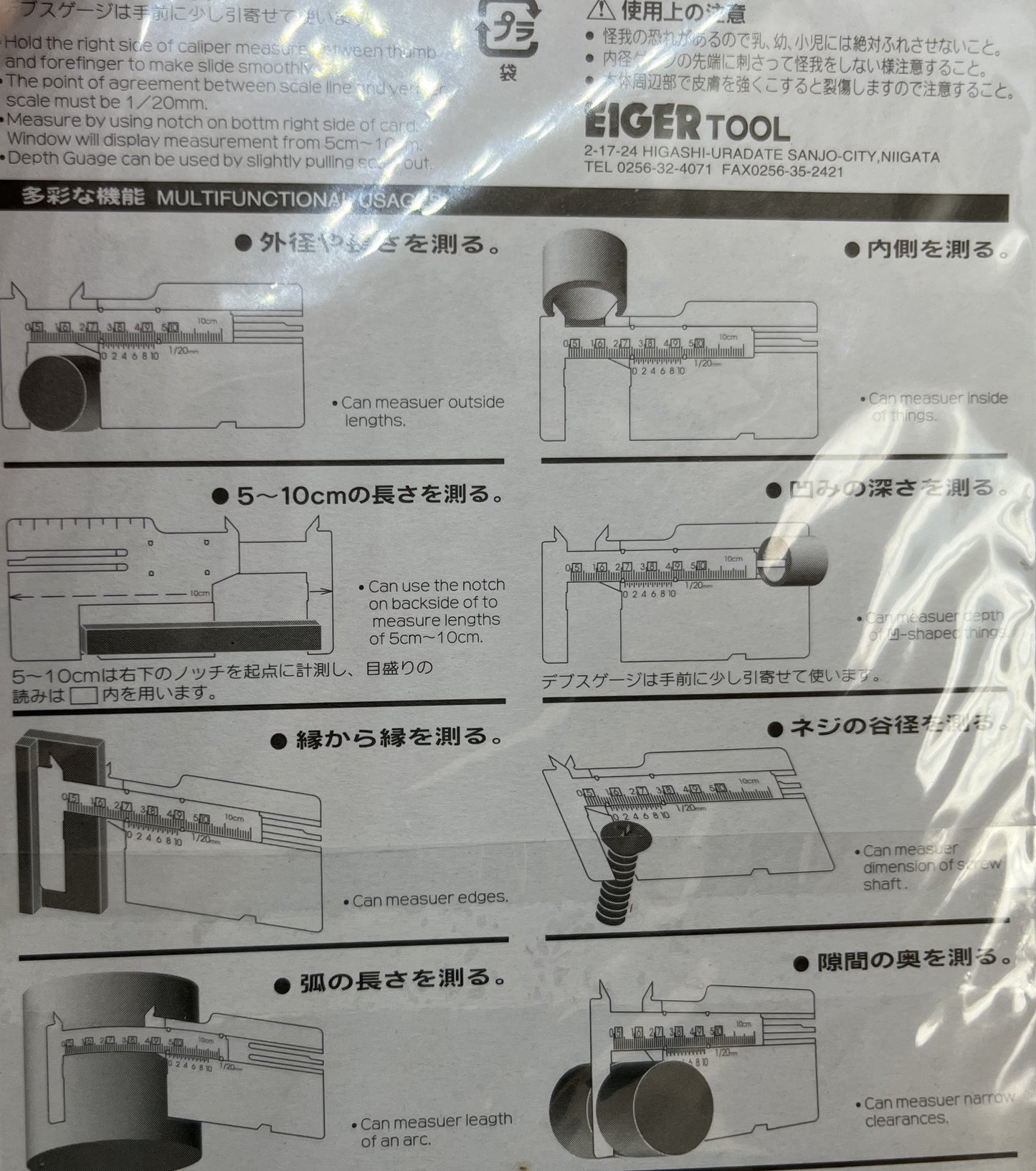

【Example of use】
1: Measure the outer diameter and length.
2: Measure the inside.
3: Measure the length of 5~10cm.
4: Measure the depth of the dent.
5: Measure from edge to edge.
6: Measure the root diameter of the screw.
7: Measure the depth of the gap.
8: Measure the length of the arc.

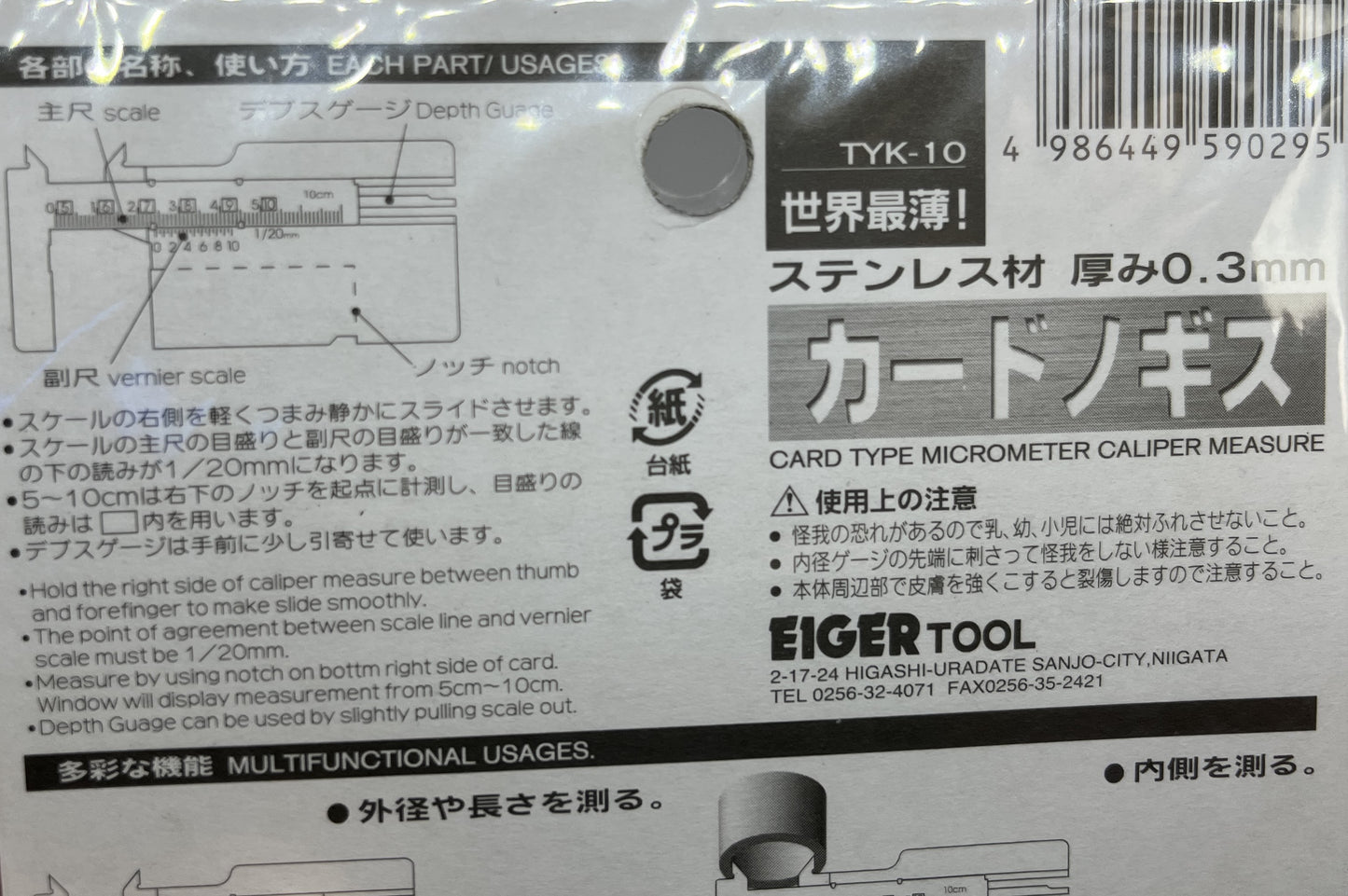

- Gently pinch the right side of the scale and slide it gently.
・The reading below the line where the main and vernier graduations of the scale match will be 1/20mm.
・For 5 to 10 cm, measure from the bottom right notch as the starting point, and use the scale reading within □.
・Use the depth gauge by pulling it slightly toward you.
Material: Stainless steel Country of origin: Japan
The thickness is a whopping 0.3mm, the world's thinnest!
Durable calipers made of stainless steel
It will be useful in various scenes!
【Example of use】
1: Measure the outer diameter and length.
2: Measure the inside.
3: Measure the length of 5~10cm.
4: Measure the depth of the dent.
5: Measure from edge to edge.
6: Measure the root diameter of the screw.
7: Measure the depth of the gap.
8: Measure the length of the arc.
- Gently pinch the right side of the scale and slide it gently.
・The reading below the line where the main and vernier graduations of the scale match will be 1/20mm.
・For 5 to 10 cm, measure from the bottom right notch as the starting point, and use the scale reading within □.
・Use the depth gauge by pulling it slightly toward you.
Material: Stainless steel Country of origin: Japan
